Overview
Precision Low-Frequency Engineering

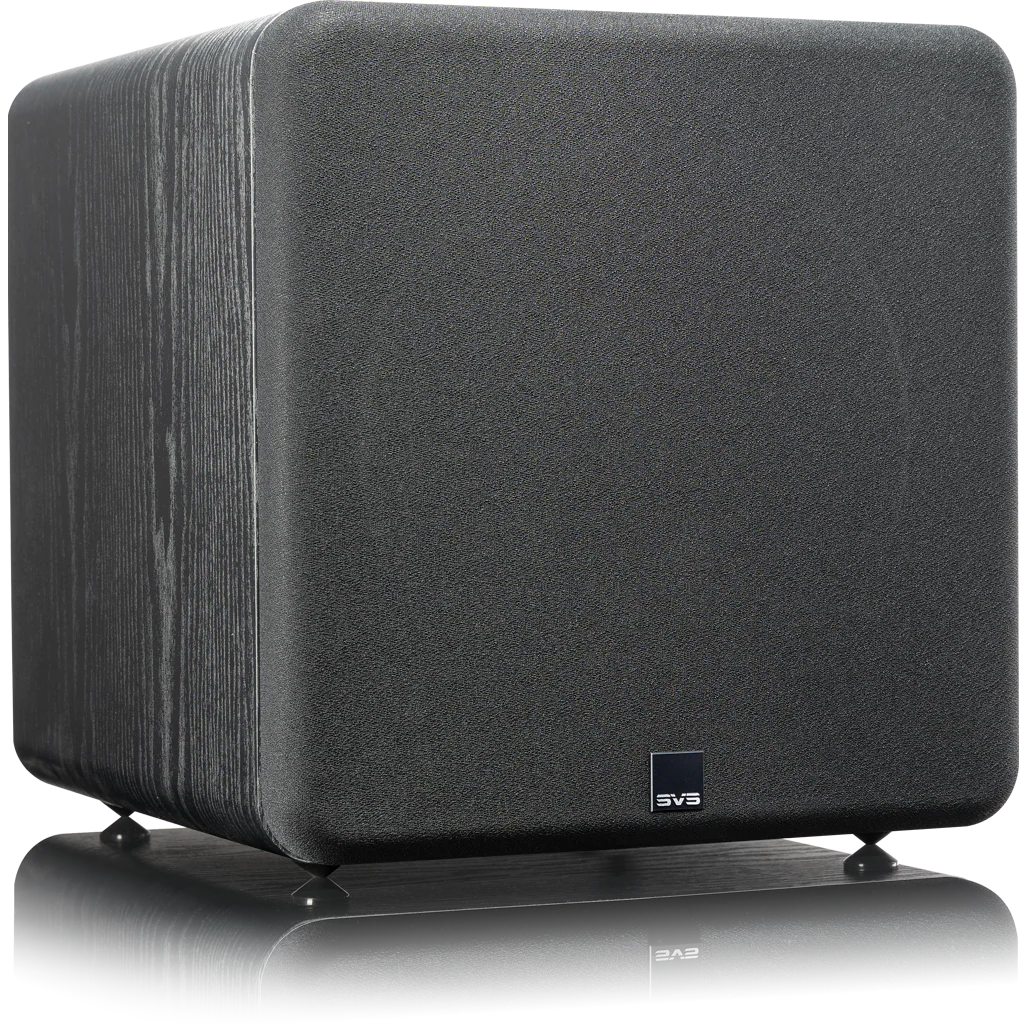

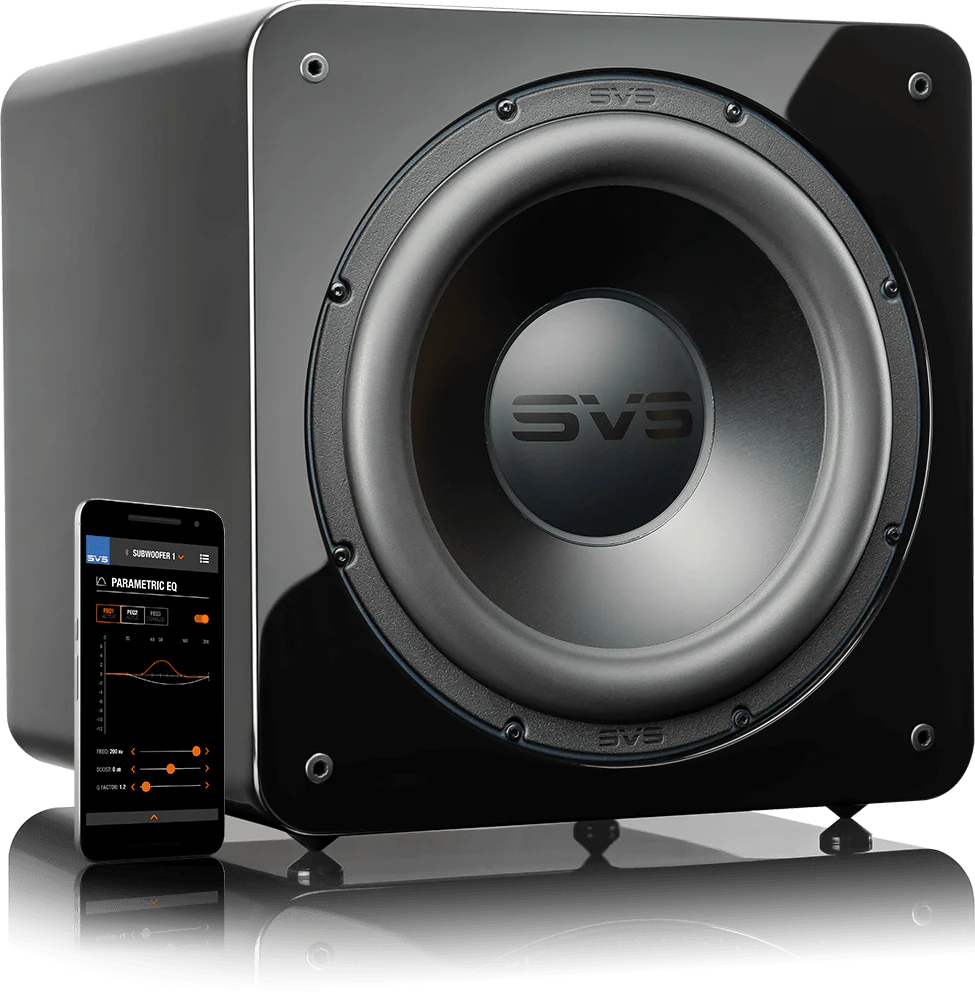

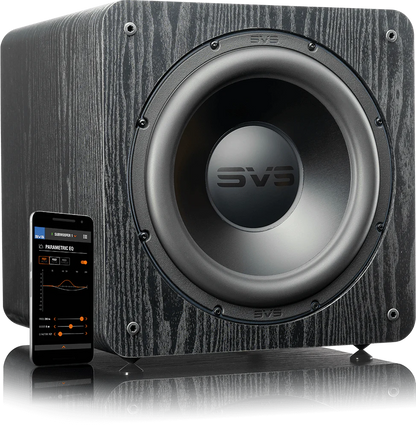

Delivering room-filling output and deep bass extension below 20 Hz with true audiophile precision, the SB-2000 Pro brings reference-level subwoofer performance to a wider audience than ever before—all from a compact 15-inch cube. It features a newly engineered 12-inch high-excursion SVS driver powered by the Sledge STA-550D amplifier with a fully discrete MOSFET output stage. A 50 MHz Analog Devices Audio DSP expertly manages the amplifier’s power to maintain precise control and impactful, room-energizing bass. The SB-2000 Pro also includes the SVS smartphone app, offering easy control of volume, DSP settings, custom presets, and more.
SB-2000 Pro Subwoofer Owner's Manual
SB-2000 Pro Subwoofer Quick Start Guide
Product Description
Reference Subwoofer Performance, Redefined Once Again
The 2000 Pro Series replaces the most popular SVS subwoofers ever created, and true to SVS philosophy, they aren’t incremental updates—they’re complete redesigns. Every aspect delivers a substantial leap forward from the original 2000 Series, offering astonishingly deep bass extension, powerful output, and remarkable musical precision. For the first time, true reference-level subwoofer performance is available at this price point from a cabinet of this size—something previously unheard of.
At the core is a refined sealed enclosure paired with a new 12-inch high-excursion SVS driver and the advanced Sledge STA-550D DSP amplifier. Together, they produce deeper bass and more room-filling output than typically expected from such compact dimensions, effortlessly commanding any listening space.
Designed for both audiophile music systems and immersive home theater setups, the SB-2000 Pro sets new performance benchmarks in its class while outperforming many significantly larger subwoofers. Convenient control is provided through the SVS Subwoofer DSP smartphone app, available for Apple, Android, and Amazon devices, allowing easy access to volume, DSP functions, and custom presets for music, movies, gaming, and more.
Stunning Output and Deep Bass with Absolute Precision
Borrowing technology from the award-winning SVS 16-Ultra Series, the SB-2000 Pro delivers breathtaking output and low-frequency extension without sacrificing accuracy or control. Its sealed cabinet design blends the most advanced SVS subwoofer engineering with new innovations, establishing a new standard for performance based on both cabinet size and value.

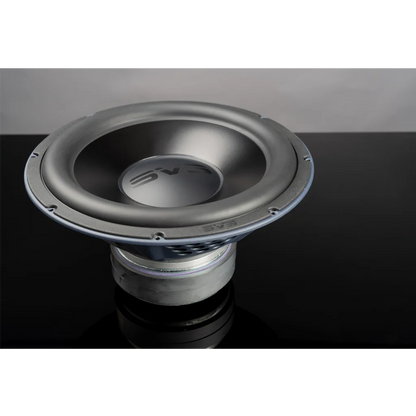

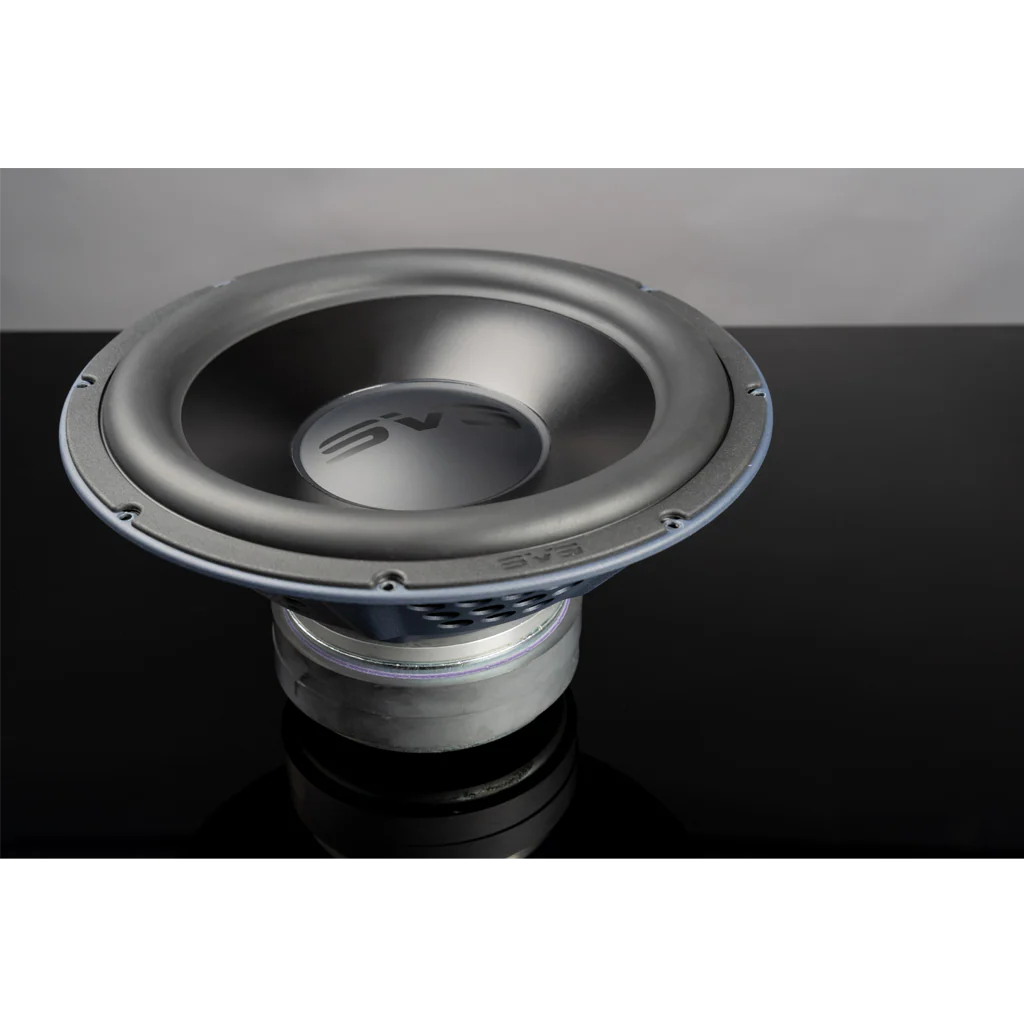

All-New 12-Inch High-Excursion SVS Driver
At the heart of the SB-2000 Pro is a completely redesigned 12-inch SVS driver engineered for powerful, articulate bass with exceptional speed and accuracy. A lightweight aluminum vented cone, combined with a composite fiber dustcap, produces room-shaking output while maintaining precise control—even at extreme listening levels.
A massive dual ferrite magnet motor assembly generates extraordinary magnetic force, enabling extreme excursion with minimal distortion and effortless bass extension below 20 Hz. The proprietary long-throw parabolic surround allows deep, tactile bass while preserving long-term driver reliability. Enhanced thermal management and a dual-layer voice coil ensure consistent linear performance with reduced distortion and power compression, even during demanding playback.
Sledge STA-550D Amplifier – Power with Total Authority
The Sledge STA-550D amplifier is engineered to unlock the full potential of the 12-inch driver, delivering effortless power and precise command. It combines the efficiency of a Class D design with fully discrete MOSFET output stages capable of moving enormous current, ensuring exceptional real-world performance in any room.
A sophisticated 50 MHz Analog Devices Audio DSP—the most advanced ever used in an SVS subwoofer—maintains pristine sound quality and pinpoint accuracy. Custom-tuned frequency response curves allow the SB-2000 Pro to fully pressurize a room with clean, impactful bass while offering advanced in-room tuning and DSP controls.

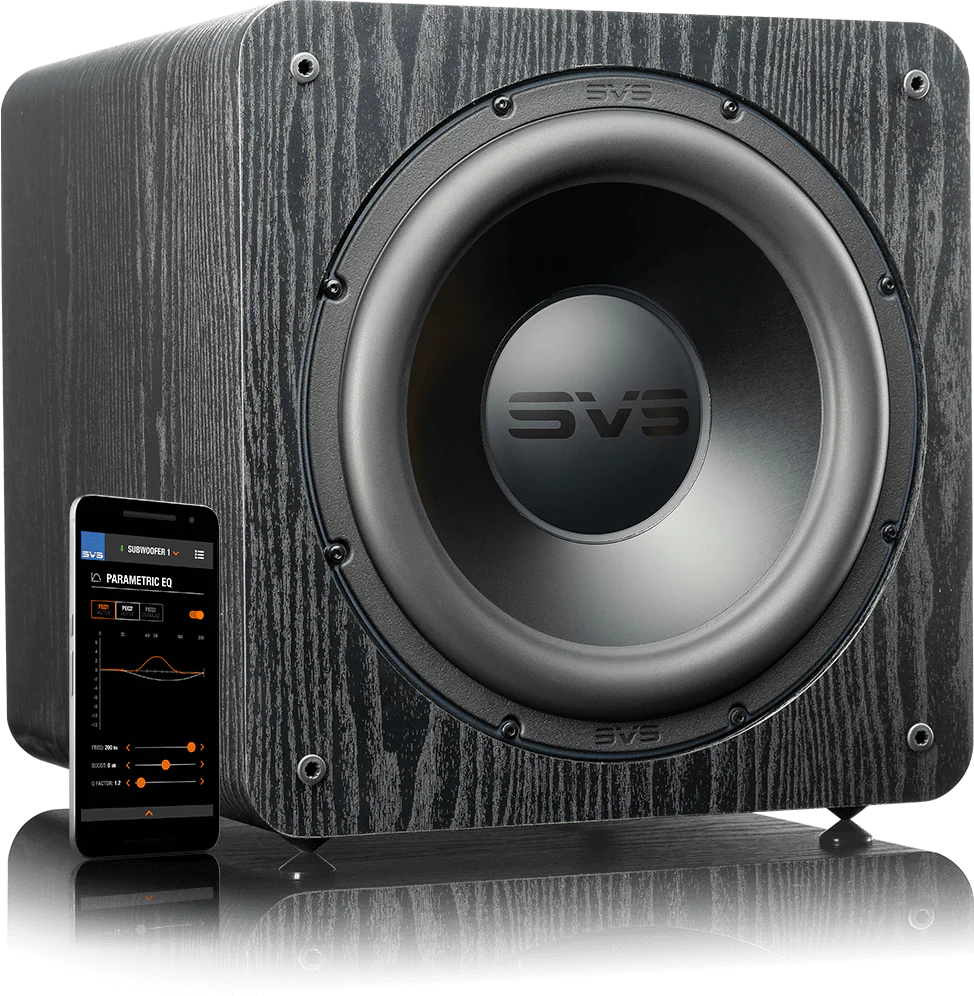

SVS Subwoofer Smartphone App – Total Control Made Simple
The SVS Subwoofer DSP app provides the easiest and most intuitive way to manage subwoofer performance. Users can adjust volume, crossover settings, polarity, room gain, and a three-band parametric EQ directly from their listening position. Three customizable presets allow one-touch optimization for music, movies, gaming, and more.
Bluetooth connectivity ensures full control even when the subwoofer is out of sight, while bi-directional feedback displays real-time changes on both the app and the rear-panel interface. Advanced options include naming the subwoofer, selecting standby modes, and restoring factory settings—giving users complete control over every aspect of performance.
![]()
Specifications
Subwoofer Specs:
- Premium Black Ash and Piano Gloss Black finish options

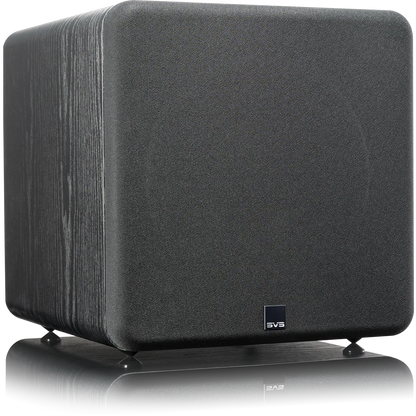

- Protective non-resonant extra-thick ABS fabric mesh grille
- Front-firing 12-inch high-excursion SVS driver

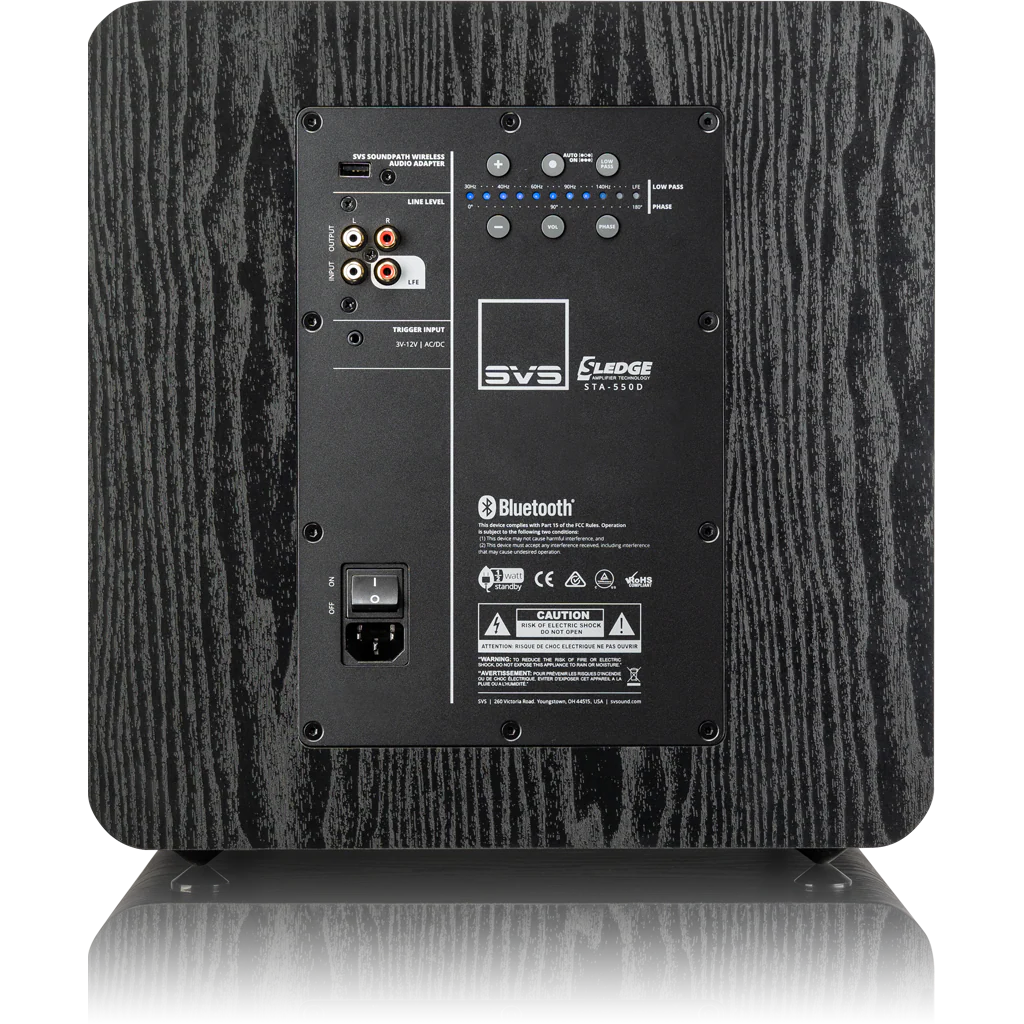

- Rear-mounted amplifier with Intelligent Control Interface (ICI)
- Iso-elastomer feet
- Robust Medium Density Fiberboard (MDF) cabinet construction
- Dimensions (w/ grille): 14.6” (372mm) H X 14.2” (360mm) W X 15.6” (395mm) D
- Dimensions (without grille): 14.6” (372mm) H X 14.2” (360mm) W X 14.6” (371mm) D
- Shipped Dimensions: 20” (508mm) H X 18.8” (502mm) W X 22.5” (571mm) D
- Weight (unboxed): 38.6lbs (17.5kg) with Grill
- Shipped Weight: 47.2lbs (21.4kg)
Driver Specs:
- All-new proprietary 12-inch high-excursion SVS 2000 Pro subwoofer driver with overhung motor
- Dual layer high purity copper voice coil provides maximum magnetics at extreme excursion while reducing mass and improving driver efficiency. Built around a premium grade 2” polyimide impregnated fiberglass former for maximum thermal conductivity.
- Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
- New premium powder coated basket, FEA optimized for maximum rigidity, tensile strength, and energy transference.
- All new 12-inch 1050 aluminum vented cone ensures a light, ridged, and neutral radiating surface.
- Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
- Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
- Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic linearity.
- Dual balanced 24-strand silver plated Litz wire high temperature leads woven through the Nomex composite spider provide a pristine electrical connection from the amplifier to the voice coil.
- Nickle-plated high-tension spring terminals.
- Proprietary injection molded gasket and extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control.
SVS Sledge-550D Amplifier Specs:
- Sledge STA-550D with 550 watts RMS continuous power (1500+ watts peak dynamic power)
- High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well beyond reference listening levels.
- High resolution 50MHz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available in a home subwoofer.
- Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three parametric EQs for absolute best alignment with speakers and optimized performance in any room.
- Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning for every room and system.
- RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.

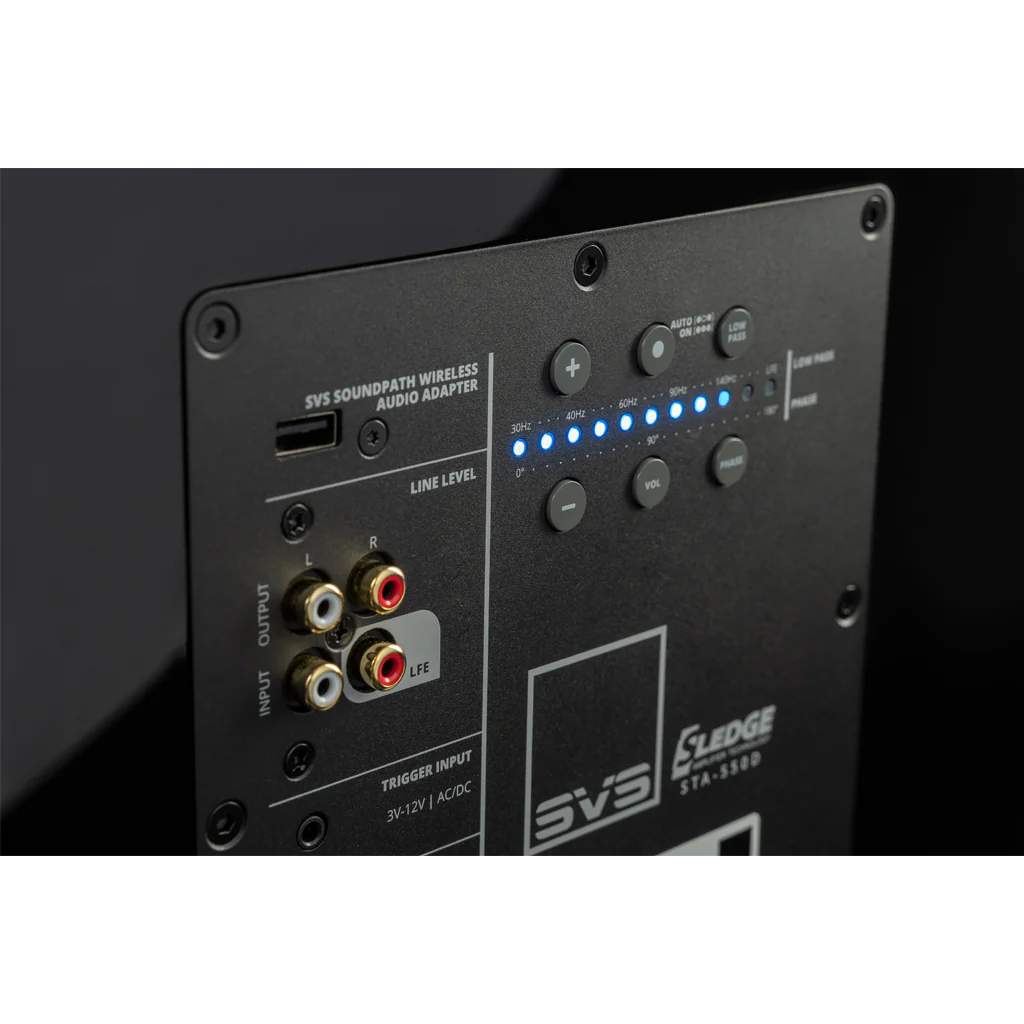

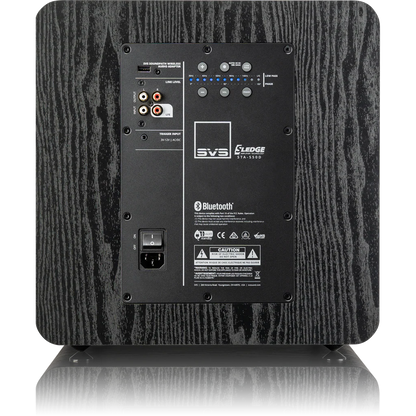

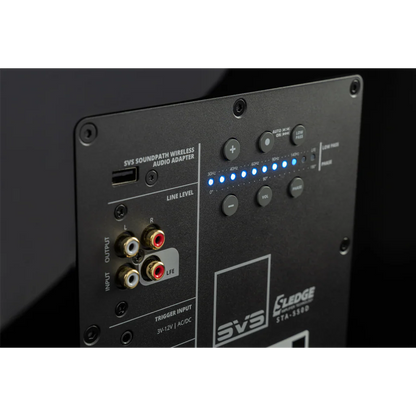

- All new rear panel Intelligent Control Interface (ICI) user interface with push-button controls.
- USB output for service and powering accessories like the SVS SoundPath Wireless Audio Adapter for wireless subwoofer placement.
- Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
- Input impedance 16kohm (unbalanced RCA).
- Green 0.5-watt low standby power consumption.
- RoHS compliant, lead-free construction, world-wide safety certifications.
SVS App Specs:
- Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
- Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
- Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
Included Accessories
Included With Your Purchase
- Protective non-resonant extra-thick ABS fabric mesh grill
- Iso-elastomer feet included
- Extra heavy-duty, high current 6-foot power cord
- Quick Start Guide
